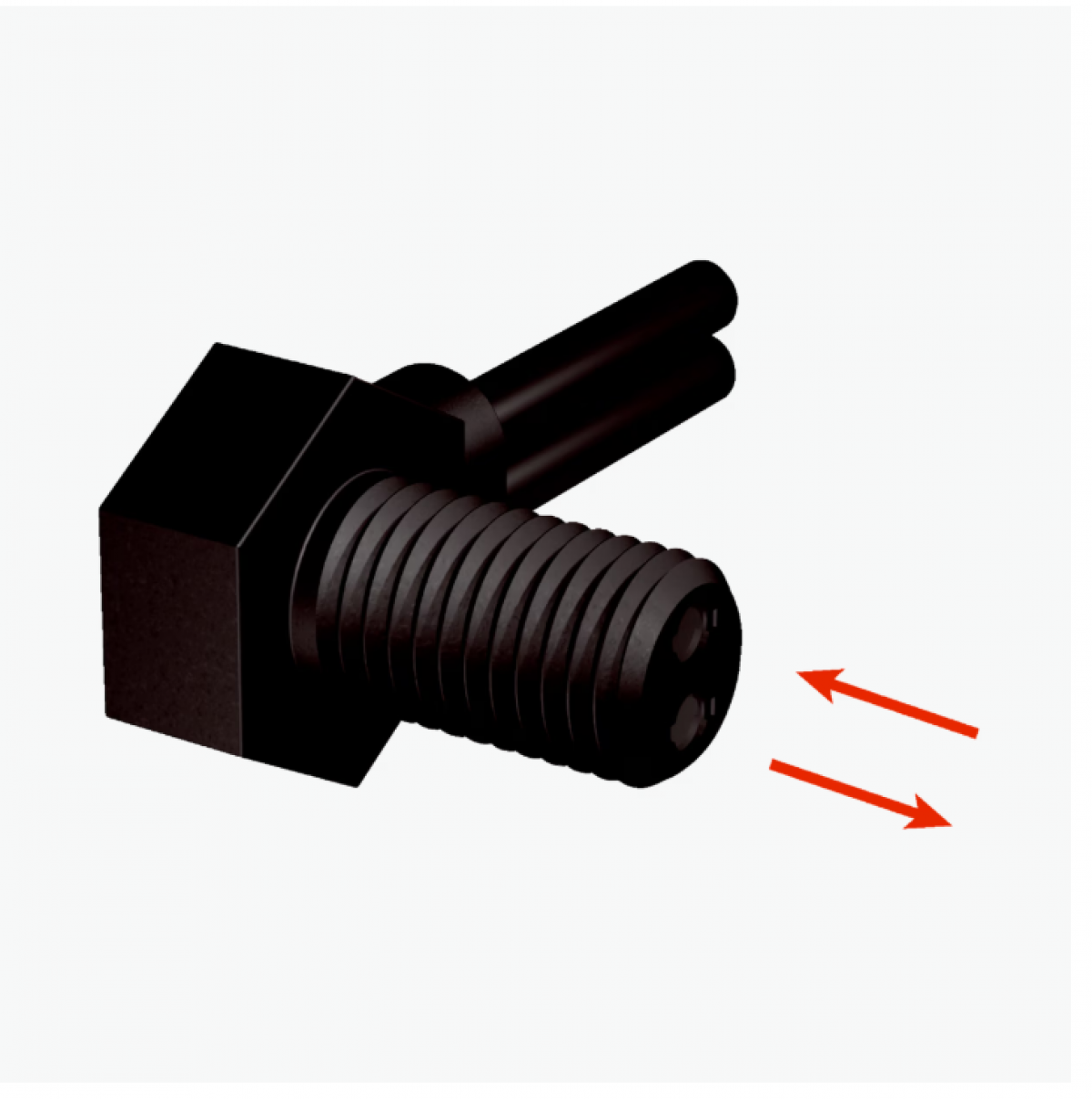

Cảm biến sợi quang Sick LL3-DV07 (5322551)

Cảm biến sợi quang Sick LL3-DV07
Device type
Fiber-optic cables
Functional principle
Proximity system
Fiber-optic head design
Threaded sleeve, 90° deflection
Application
High flexible (static)
Compatible fiber-optic amplifiers
WLL80, WLL180, GLL170(T), WLL24 Ex
Sensing range max.
660 mm (Sensing range of WLL80 at 8 ms)
Minimal object diameter
0.015 mm 1)
Optical fiber head
Angle of dispersion
15.94°
Integrated lens
Yes
Compatibility tip adapters
No
Optical fiber
Compatibility with infrared light
No
Optical fiber cable can be shortened
✔
Adapter end sleeves required
No
Included with delivery
Mounting, 1 x M6 hexagon nut, FC fiber cutter (5304141)
