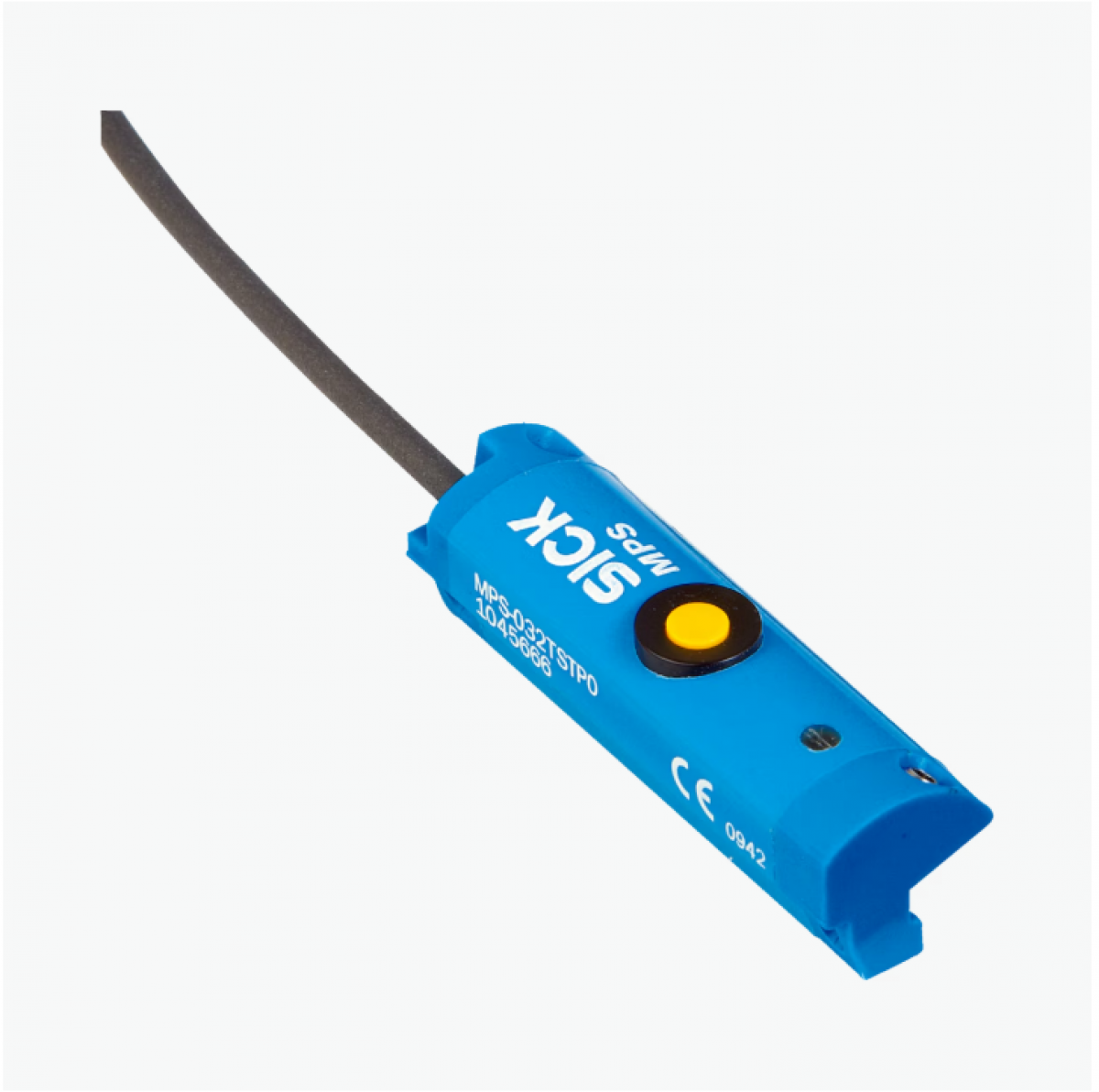

Cảm biến xy lanh Sick MPS-032TLTQ0

Cảm biến xy lanh Sick MPS-032TLTQ0
Cylinder type
T-slot
Cylinder types with adapter
Round body cylinder
Profile cylinders and tie-rod cylinders
Dovetail groove cylinder
SMC rail CDQ2
SMC rail ECDQ2
SMC cylinders with C-slot
Measuring range
32 mm 1)
Housing length
45 mm
Output function
IO-Link
Electrical wiring
DC 4-wire
Enclosure rating
IP67 2)
Adjustment
Teach-in control panel
Resetting the measuring range to factory settings
IO-Link
Key lock
Teaching in the measuring range
Resetting the measuring range
IO-Link functions
Standard functions
1) ± 1 mm.
2) According to EN 60529.
Technical drawings
Installation note
Connection diagram Cd-179
Dimensional drawing Cable with connector M12, with knurled nuts, Teach-in
