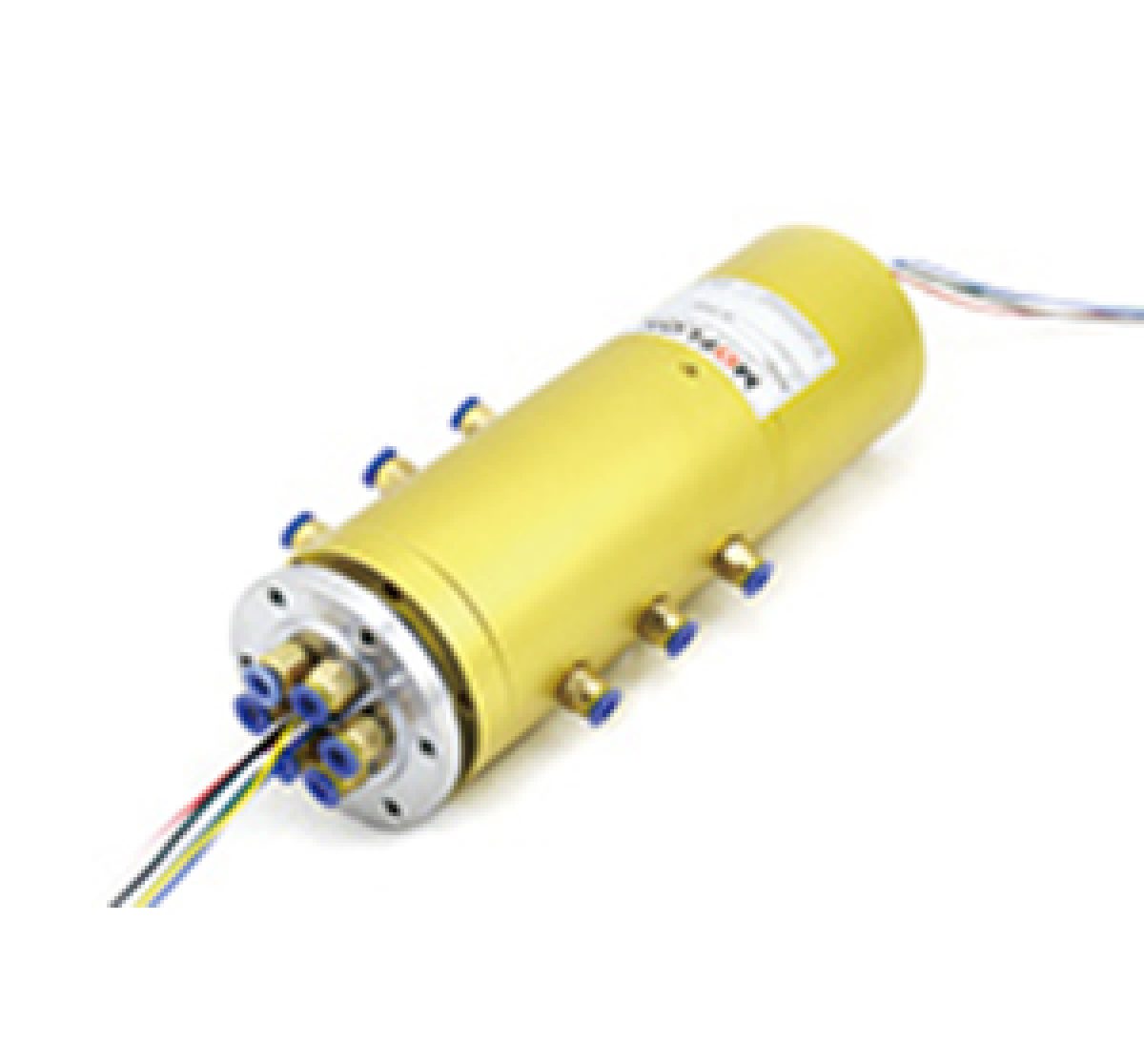

Dòng MAPH600 6 Đầu vào 6 Đầu ra Nhiên liệu/Khí + 0~96 Mạch

Standard series PART# Explanation
Product Quality Level Table
Products Level Code
Max speed
Working Life
Sealing Element
VC
100RPM
10Million Revs.
Common Seals
VD
300RPM
30Million Revs.
High-Quality Seals

Specification
Rotary Union Specifications
Mechanical data
Parameter
Value
Parameter
Value
Passage
6 in 6 out
Working Life
See Prod Quality Level
Max.
10MPa，Vacuum 0.01torr
Rotating Speed
See Prod Quality Level
Torque
Consult technician about details
Working Temp.
-30℃~80℃
Electrical data
Operating Humidity
0~85% RH
Parameter
Value
Contact Material
Precious Metal
Power
Signal
Housing Material
Aluminium Alloy
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Protection grade
IP51
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Lead Wires
AWG17#Teflon
AWG22#Teflon
Lead Length
Standard 300mm
Dielectric Strength
500VAC@50Hz，60s
Res Noise
<0.01Ω

Part List
Dimension
Installing
Options
Customized
Case-Study
Price
MAPH600-01 (6 passages M5)
MAPH600-02 (6 passages G1/8")
MAPH600-03 (6 passages G1/4")
MAPH600-XX Pnuematic/Hydraulic Hybrid Slip Ring
1）XX=01,Connection size=M5， Pipe size3~6mm
2）XX=02,Connection size=G1/8，Pipe size3~10mm
3）XX=03,Connection size=G1/4，Pipe size3~12mm
Part#
Pnuematic/Hydraulic Passage
10A
Signal/5A
Length(mm)
Part#
Pnuematic/Hydraulic Passage
10A
Signal/5A
Length(mm)
MAPH600-XX-S06
6 in 6 out
0
6
38
MAPH600-XX-P0810-S10
6 in 6 out
8
10
71.6
MAPH600-XX-P0210-S04
6 in 6 out
2
4
38
MAPH600-XX-P1010-S08
6 in 6 out
10
8
71.6
MAPH600-XX-P0410-S02
6 in 6 out
4
2
38
MAPH600-XX-P1210-S06
6 in 6 out
12
6
71.6
MAPH600-XX-P0610
6 in 6 out
6
0
38
MAPH600-XX-P1410-S04
6 in 6 out
14
4
71.6
MAPH600-XX-S12
6 in 6 out
12
0
54.8
MAPH600-XX-P1610-S02
6 in 6 out
16
2
71.6
MAPH600-XX-P0210-S10
6 in 6 out
2
10
54.8
MAPH600-XX-S24
6 in 6 out
0
24
88.4
MAPH600-XX-P0310-S09
6 in 6 out
3
9
54.8
MAPH600-XX-P0410-S20
6 in 6 out
4
20
88.4
MAPH600-XX-P0610-S06
6 in 6 out
6
6
54.8
MAPH600-XX-P0610-S18
6 in 6 out
6
18
88.4
MAPH600-XX-P0810-S04
6 in 6…
