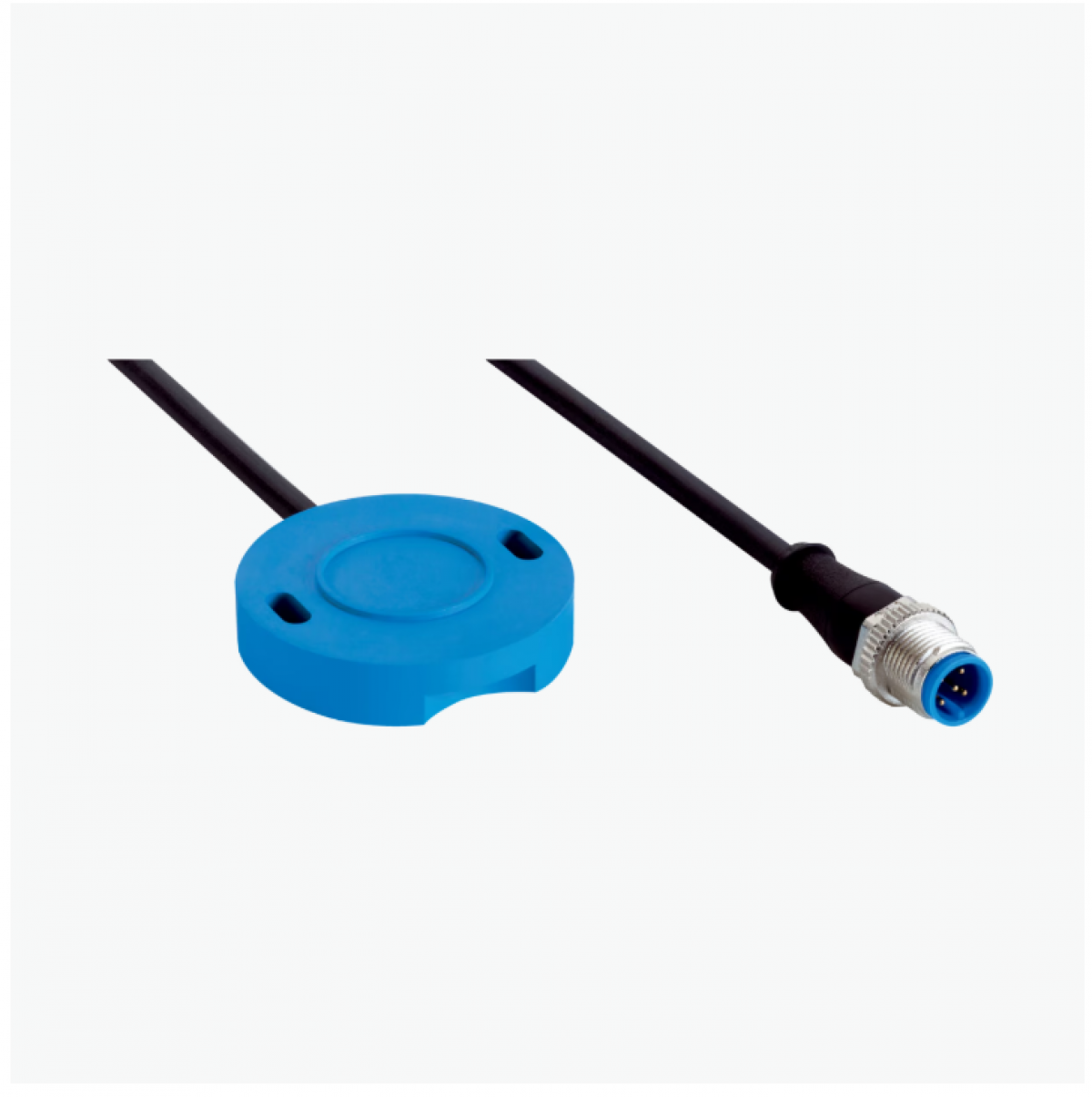

Cảm biến từ Sick MASQ47-36PEKU1SA10

Cảm biến từ Sick MASQ47-36PEKU1SA10
Dimensions
47 mm x 47 mm x 10 mm
Measuring range
0° … 360°
Resolution
12 bit
Linearity error, typ.
± 1°
Repeatability
< 0.3° 1)
Number of adjustable angles
32
Sampling rate
900 Hz
Switching output
3 x PNP or IO-Link mode 2 x PNP
Output function
Programmable (factory setting: normally open contact)
Electrical wiring
DC 5-wire
Working distance
1.5 mm … 4 mm 2)
Magnetic misalignment
± 0.2 mm
Indication
LED green
Static on: power on
Flashing: IO-Link mode
Flashing: find device activated
LED yellow
Q1 (pin4) permanently on: contact closed
Flashing: find device activated
Flashing: Magnet too far away
LED yellow 1
Q2 (pin2) permanently on: contact closed
Flashing: find device activated
Flashing: Magnet too far away
LED yellow 2
Q3 (pin5) permanently on: contact closed
Flashing: find device activated
Flashing: Magnet too far away
1) Supply voltage UB and constant ambient temperature Ta.
2) This specification is measured with the magnets listed under accessories. The value may vary if other magnets are used.
