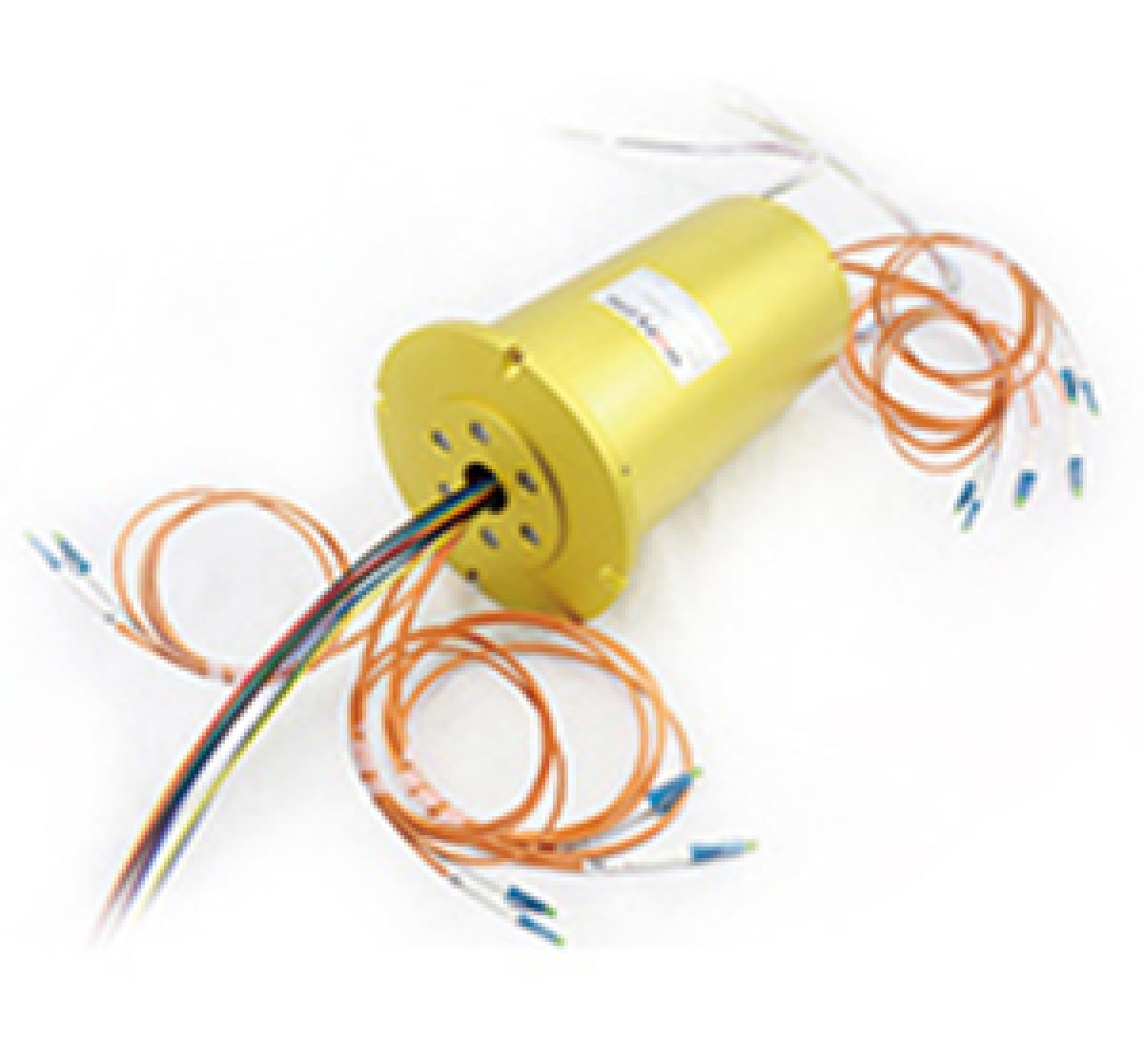

Dòng MFO808 Dòng sản phẩm MFO Khớp nối quay sợi quang + Vòng trượt điện

Standard series PART# Explanation
Specification
Items
Type
Single-mode
Multiple-mode
WaveWidth(nm)
±50
Max insert Loss，23℃(dB)
4
3.5
Insert Loss Ripple(dB)
2
1
Return Loss(dB)
≥50(APC)
≥40(PC)
Max Power(W)
0.5
Weight(g)
200
Max speed(rpm)
250
Working Life
>200 million revs
Working Temp.(℃)
-45~85
Storage Temperature(℃)
-50~85

Mechanical data
Electrical data
Parameter
Value
Parameter
Value
Working Life
80Million Revs.
Power
Signal
Rotating Speed
250RPM
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Working Temp.
-30℃~80℃
Insulation Res
≥1000MΩ/500VDC
≥1000MΩ/500VDC
Operating Humidity
0~85% RH
Lead Wires
AWG16#Teflon
AWG22#Teflon
Contact Material
Gold-Gold
Lead Length
Standard 300mm
Housing Material
Aluminium Alloy
Dielectric Strength
500VAC@50Hz，60s
Torque
0.1N.m;+0.03/6ring
Res Noise
<0.01Ω
Protection grade
IP51

Part List
Dimension
Installing
Options
Customized
Case-Study
Price
MFO808 series parts# list
Part#
Optic Fiber
Channel
10A
Signal/5A
Length
(mm)
Part#
Optic…
