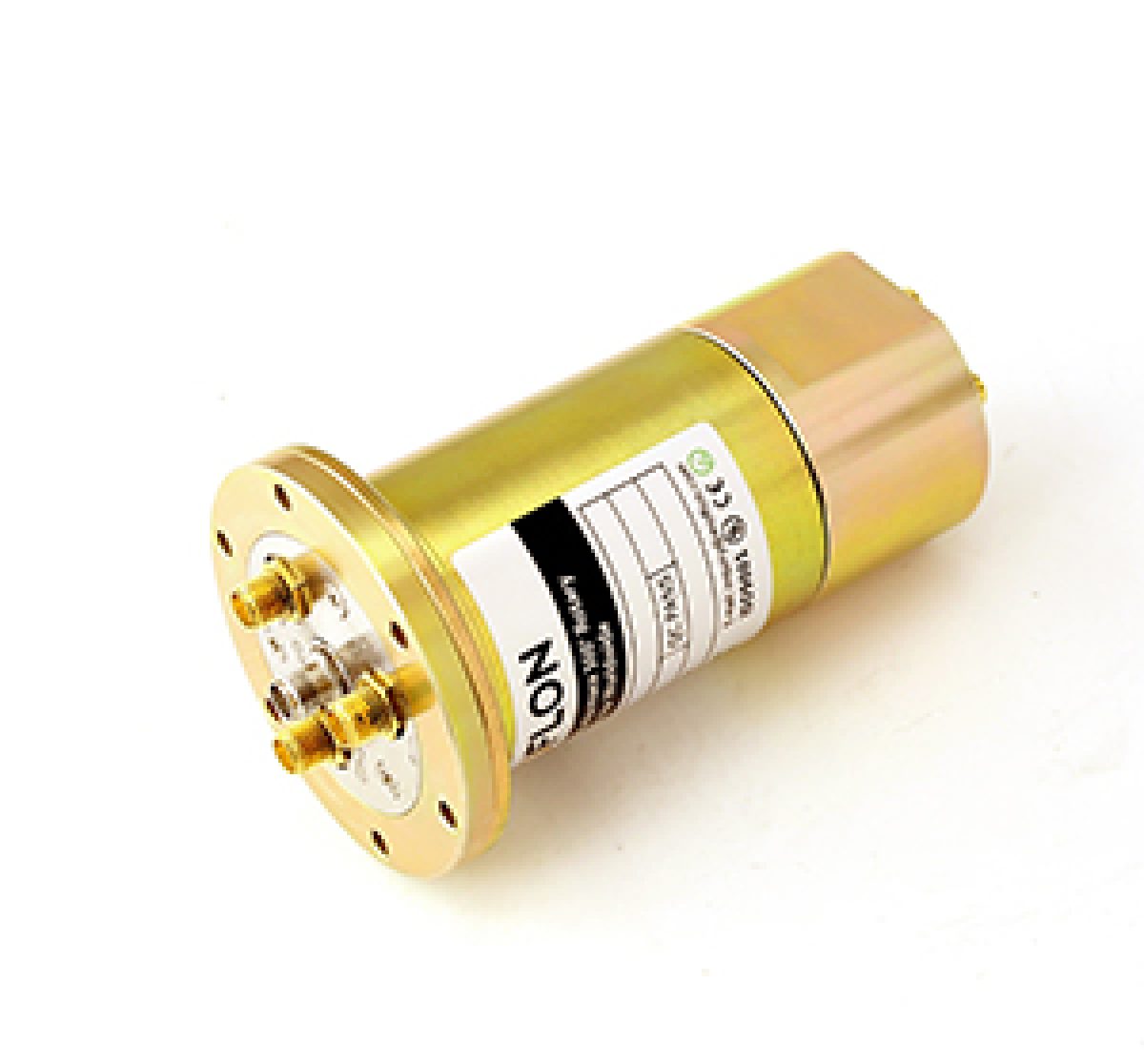

Dòng MHF400 Vòng trượt đồng trục/RF/tần số cao 4 kênh | Khớp quay

Standard series PART# Explanation
Specification
Mechanical data
(RF Rotary joints) Specifications
Parameter
Value
Parameter
1
2
3
4
Working Life
50Million Revs.
Insertion Loss
<0.5
<0.5
<0.5
<0.5
Rotating Speed
100RPM
Insertion Loss Ripple
<0.05
<0.05
<0.05
<0.05
Working Temp.
-30℃~80℃
VSWR
<1.3
<1.3
<1.3
<1.3
Operating Humidity
0~85% RH
VSWR Ripple
<0.05
<0.05
<0.05
<0.05
Contact Material
Gold-Gold
Average Power
50W
15W
15W
15W
Housing Material
stainless steel
Torque
0.1N.m;+0.03/6ring
Protection grade
IP51

Part List
Dimension
Installing
Options
Customized
Case-Study
Price
MHF400 – 4channel RF rotary joint part list
Part#
RF Channel
Frquency
Connector Types
MHF400-SMA-2.5G
4
2.5GHz/Channel
SMA
