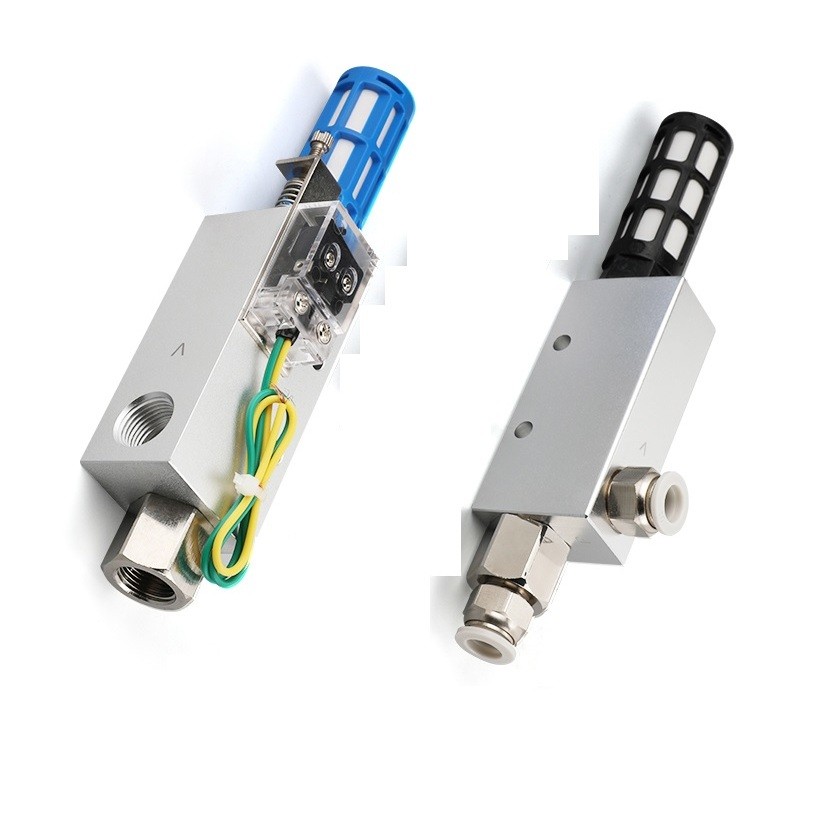

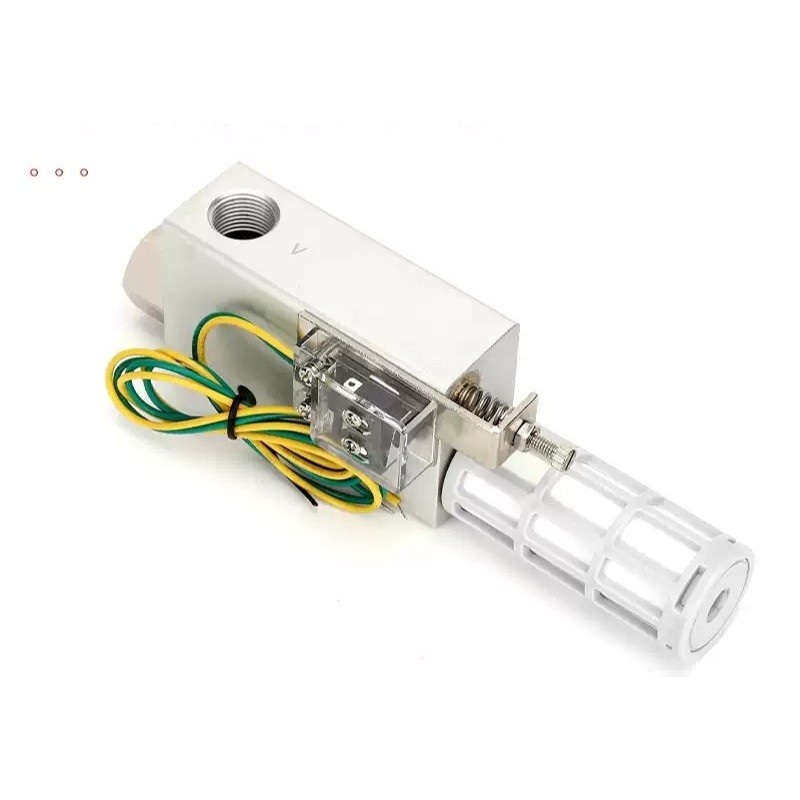

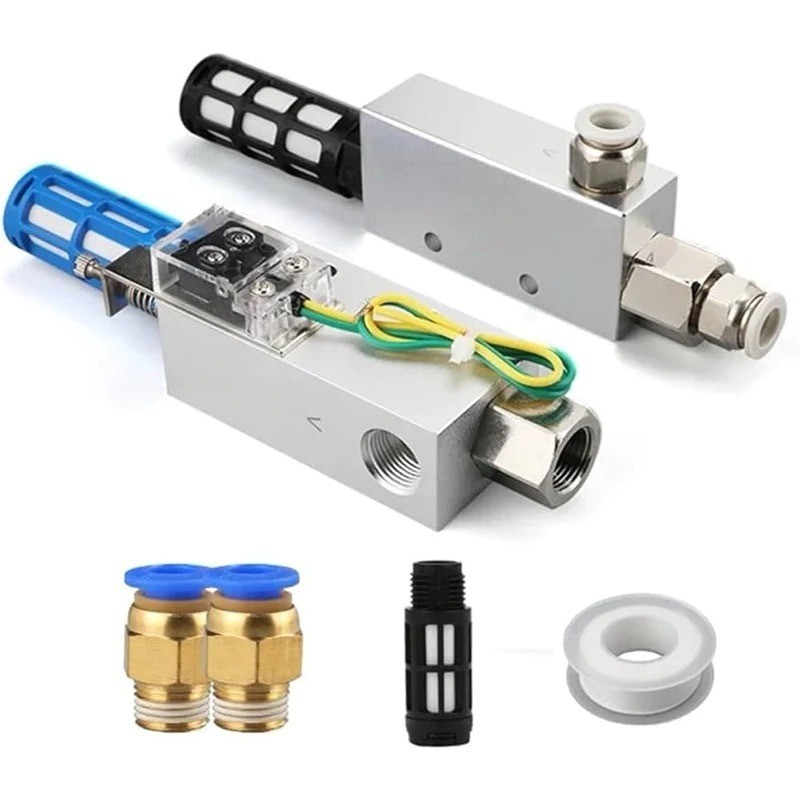

Van chân không có công tắc điểm CV-20HS(CV-15/CV-10) CV-25HSCK EV New

Specification

Fluid Air

Operating Temperature Range 0~60ºC(No Freezing)

Lubricator No

Operating Pressure Range 0.1~0.6MPa

Mechanical Vacuum Signal to Confirm Installation

Item -S Fixed Type -SK Adjustable Type

Setting Range(kPa) -39.9 -20.0~53.2

Initial Setup(kPa) -39.9 -46.6

Operation Precision(kPa) ±5.3

Hysteresis(kPa) 4.0~13.3

Electrical Specification AC125V:5A, AV250V:3A, DC250V:0.2A

Operating Temperature Range(ºC) 0~60

Model Specification

Model Nozzle Dia. (mm) Flow Rate (L/min) Vacuum Pressure (-kPa) Air Consumption (L/min) Supply Pressure (MPa)

CV-05-R 0.5 6 86.6 13 0.5

CV-05-L 0.5 9 57.2 13 0.5

CV-10-R 1.0 27 91.8 44 0.5

CV-10-L 1.0 36 57.2 44 0.5

CV-15-R 1.5 63 91.8 100 0.5

CV-15-L 1.5 95 57.2 100 0.5

CV-20-R 2.0 110 91.8 180 0.5

CV-20-L 2.0 165 57.2 180 0.5

CV-25-R 2.5 160 91.8 265 0.5

CV-25-L 2.5 250 57.2 265 0.5

CV-30-R 3.0 225 91.8 385 0.5

CV-30-L 3.0 350 57.2 385 0.5

CV-10-RH 1.0 25 90.6 44 0.35

CV-15-RH 1.5 54 90.6 100 0.35

CV-20-RH 2.0 88 90.6 180 0.35
