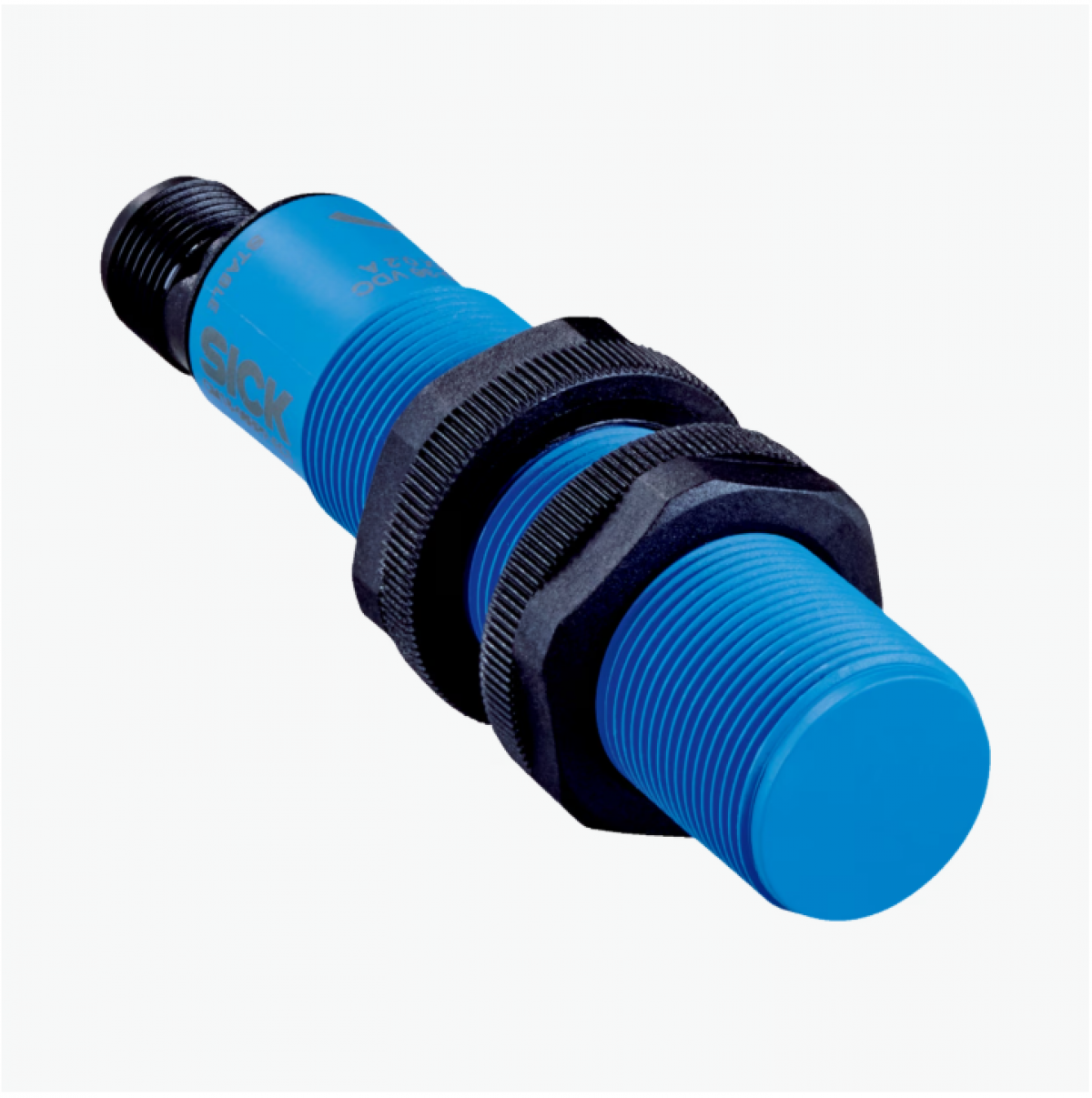

Cảm biến tiệm cận điện dung Sick CMB18-08BPPEC0SA00

Cảm biến tiệm cận điện dung Sick CMB18-08BPPEC0SA00
Housing
Metric
Thread size
M18 x 1
Diameter
Ø 18 mm
Sensing range Sn
0 mm … 8 mm
Safe sensing range Sa
6.12 mm 1)
Installation type
Flush
Switching frequency
50 Hz
Connection type
Male connector M12, 4-pin
Switching output
PNP
Output function
Complementary
Output characteristic
Wire configurable
Electrical wiring
DC 4-wire
Adjustment
Potentiometer
Sensitivity (11 turns)
Wire/pin
Sensitivity
IO-Link
Sensitivity, sensor parameters and Smart Task functions
Enclosure rating
IP67
IP68 2)
IP69K
Special features
Visual adjustment indicator, Smart Task, IO-Link
Pin 2 configuration
External input, Teach-in, switching signal
Items supplied
Mounting nut, PA12 plastic (2x)
Screwdriver for potentiometer adjustment (1 x)
1) For flush mounting in electrically conductive materials Sa = 0.8 x Sr at temperatures 60 °C.
2) 1 m water depth / 60 min.
Technical drawings
Installation note Flush installation
Connection diagram Cd-526
Response diagram CMB18, Flush installation
Dimensional drawing CMB18, flush, connector
