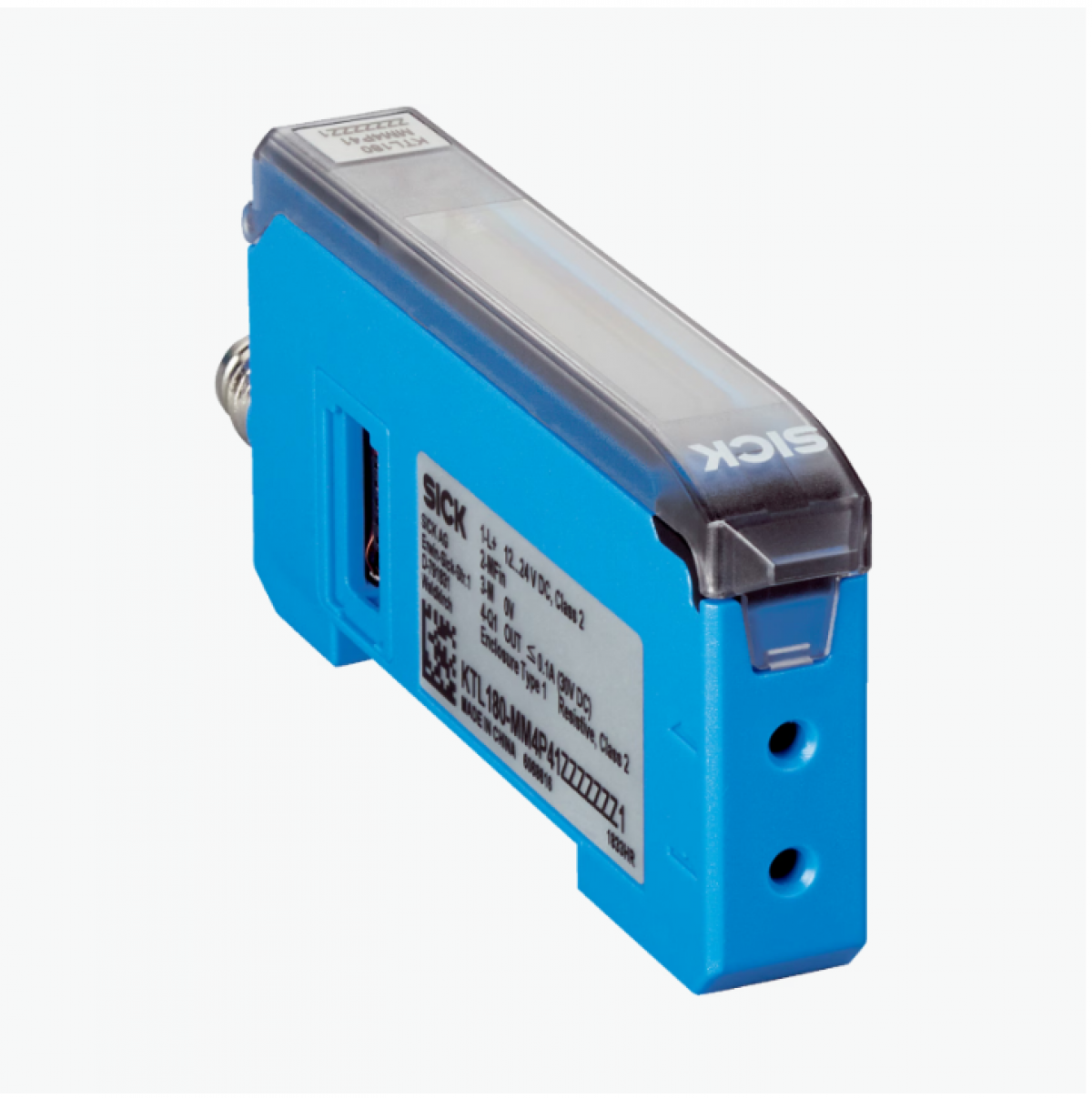

Cảm biến tương phản Sick KTL180-MM4P41ZZZZZ

Cảm biến tương phản Sick KTL180-MM4P41ZZZZZ
Special applications
–
Device type
Base unit
Indication
Display
Display
LED status display / 2x 4-character digital dual displays, Set value (green indicator) and actual value (red indicator) are displayed simultaneously, display of parameters
Dimensions (W x H x D)
10.5 mm x 33.2 mm x 71.9 mm
Sensing range
0 mm … 30 mm, Proximity system 1)
Sensing distance
≤ 30 mm 2)
Housing design
For fiber-optic
Light source
LED, white 3)
Angle of dispersion
Approx. 65° 4)
Wave length
400 nm … 750 nm
Teach-in mode
1-point teach-in, 2-point teach-in, teach-in dynamic
Delay time
Adjustable
Special features
Multi-function input, base unit for BUS mode
Delivery status
Teach-in dynamic
Parameter presettings
None
1) Objects to be sensed with 90% reflectivity (based on DIN 5033 white standard). Sensing range depends on fiber-optic cable.
2) Depends on the fiber used.
3) Average service life: 100,000 h at TU = +25 °C.
4) See LL3 fiber-optic data.
Technical drawings
Dimensional drawing Bus type
Adjustments
Connection diagram Cd-380
Sensing distance LL3-DZ01
Sensing distance LL3-DM02 (LL3-DA09)
Sensing distance LL3-DM02 (LL3-DA06)
Sensing distance LL3-DM02 (LL3-DA06)
Sensing distance LL3-DC38
Sensing distance LL3-DB09, LL3-DK04, LL3-DY01
Sensing distance LL3-DB01, LL3-DB04, LL3DM02
Sensing distance LL3-DC09
