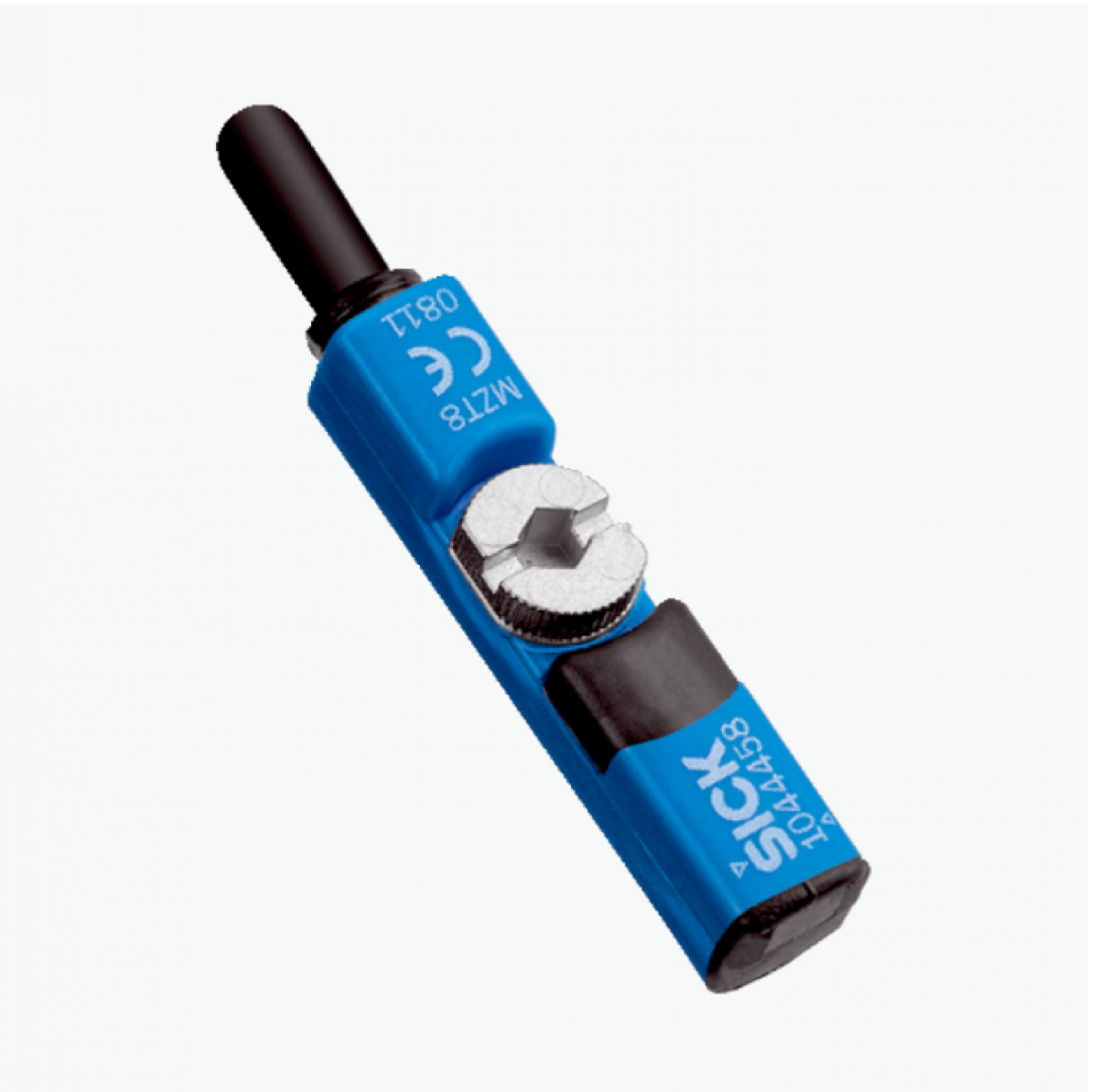

Cảm biến xy lanh Sick MZT8-2V6PSAKUB

Cảm biến xy lanh Sick MZT8-2V6PSAKUB
Cylinder type
T-slot
Cylinder types with adapter
Profile cylinder
Tie rod cylinder
Round body cylinder
Dovetail groove cylinder
SMC rail CDQ2
SMC rail ECDQ2
Housing length
24 mm
Switching output
PNP
Switching frequency
1,000 Hz
Output function
NO
Electrical wiring
DC 3-wire
Enclosure rating
IP68 1)
IP69K 2)
Adjustment
IO-Link
NC or NO
Switch-on or switch-off delay (up to 1.6 seconds)
Special features
Visual installation aid/LED indicator (yellow)
Power LED (green)
Interior housing temperature (via IO-Link)
Counter function (via IO-Link)
1) According to EN 60529 (IP 67 / IP 68).
2) According to DIN 40050 (IP 69K).
Technical drawings
Installation note
Connection diagram Cd-401
Dimensional drawing Cable
