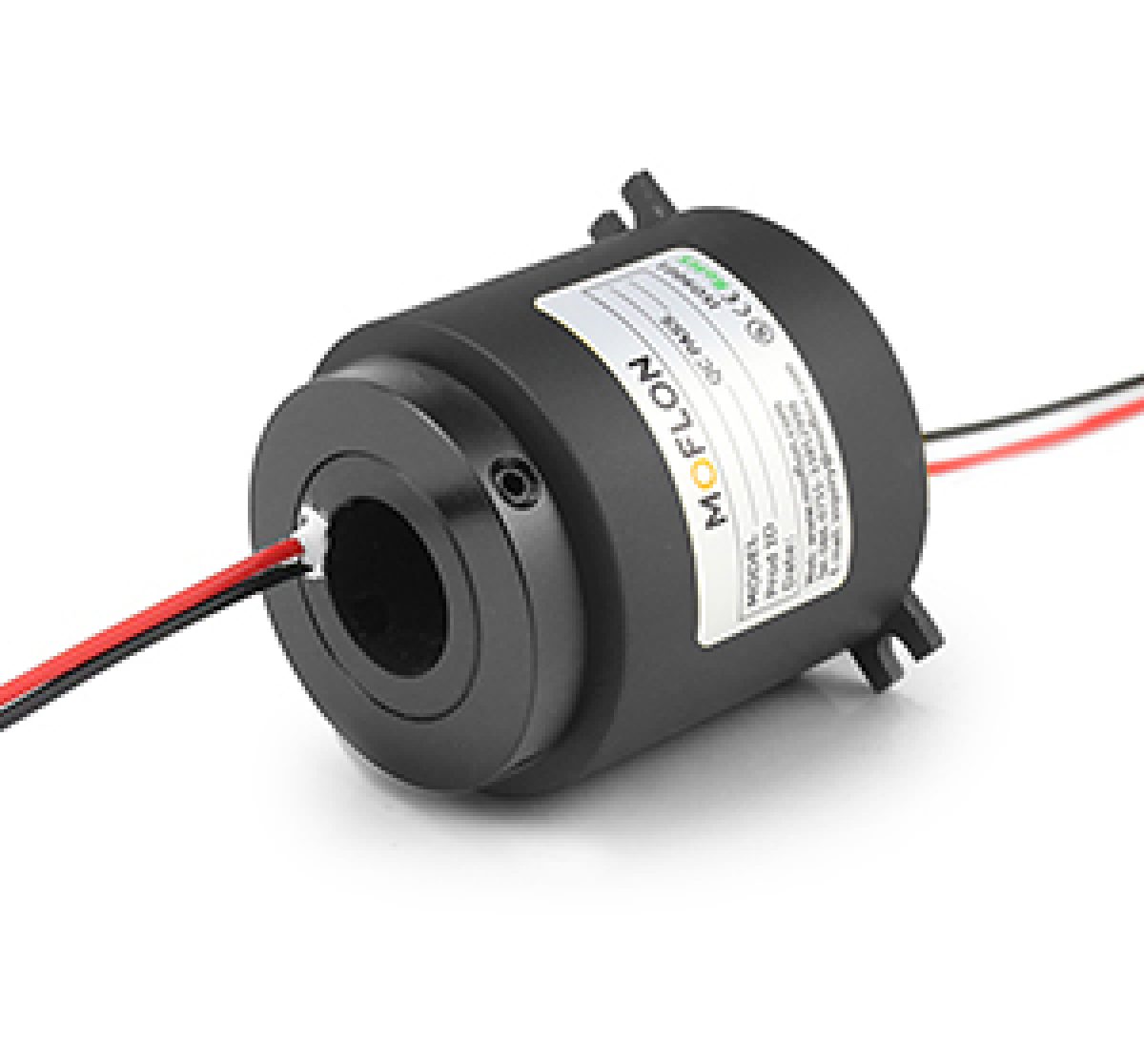

Dòng GT0729 Kích thước lỗ 7mm, OD 29mm, 2~12 vòng

Standard series PART# Explanation

Specification
Mechanical data
Electrical data
Parameter
Value
Parameter
Value
Working Life
100 Million Revs
Power
Signal
Rotating Speed
1~1800PRM
Rated Voltage
0~440VAC/VDC
0~440VAC/VDC
Working Temp.
-30℃~80�?/td>
Insulation Res
�?00MΩ/500VDC
�?000MΩ/500VDC
Operating Humidity
0~85% RH
Lead Wires
AWG22#Teflon
AWG22#Teflon
Contact Material
Precious Metal
Lead Length
Standard 300mm
Housing Material
Engineering Plastics
Dielectric Strength
500VAC@50Hz�?0s
Torque
0.05N.m�?0.02N.m/6ring
Res Noise
<0.03Ω
Protection grade
IP51

Part List
Dimension
Installing
Options
Customized
Case-Study
Price
GT0729 Series Parts# List
Part#
10A
Signal/5A
Length(mm)
GT0729-S02
0
2
30
GT0729-P0210
2
0
30
GT0729-S03
0
3
30
GT0729-P0310
3
0
30
GT0729-S04
0
4
30
GT0729-P0410
4
0
30
GT0729-S06
0
6
30
GT0729-P0210-S03
2
3
30
GT0729-P0410-S02
4
2
30
GT0729-P0610
6
0
43.8
GT0729-S12
0
12
43.8
GT0729-P020-S09
2
9
43.8
GT0729-P0410-S06
4
6
43.8
GT0729-P0610-S03
6
3
43.8
GT0729-P0810-S06
8
6
57.6
GT0729-P1010-S03
10
3
57.6
GT0729-P1210
12
0
57.6
